Telescope Magnification Calculator
Telescope magnification is the focal length of the telescope divided by the focal length of the eyepiece. A 1200 mm telescope with a 10 mm eyepiece gives 120x. The useful ceiling is about 2x per millimetre of aperture, or 50x per inch, so a 130 mm telescope tops out near 260x no matter what the box claims.
Magnification is not a specification of a telescope. It is a specification of a pairing, and it changes every time you swap an eyepiece. Magnification equals telescope focal length divided by eyepiece focal length. Feed the calculator your two focal lengths and your aperture and it returns the magnification, the exit pupil, the true field of view and, more usefully, whether the combination is inside or outside what your aperture can actually deliver.
Magnification calculator
Aperture and focal length are printed on the tube or in the manual. Apparent field of view is the eyepiece specification, usually 50 to 52 degrees for a Plossl, 60 to 68 for a wide field and 82 or more for an ultra wide.
How do you calculate telescope magnification?
One division, and nothing else:
Magnification = telescope focal length ÷ eyepiece focal length
Both figures are in millimetres. A telescope with a 1200 mm focal length and a 25 mm eyepiece gives 48x. Swap to a 10 mm eyepiece and the same telescope gives 120x. Nothing about the telescope changed. This is the reason "how much does this telescope magnify" has no answer, and the reason a box that prints one magnification figure on the front is selling you a misunderstanding along with the telescope.
A Barlow lens multiplies the effective focal length of the telescope before the eyepiece sees it, so a 2x Barlow doubles the magnification of every eyepiece you own. That is genuinely useful, because it turns two eyepieces into four focal lengths for about thirty dollars, and it is why a Barlow is usually a better first purchase than a third eyepiece.
| Eyepiece | 650 mm scope | 900 mm scope | 1200 mm scope | 1500 mm scope | 2032 mm scope |
|---|---|---|---|---|---|
| 32 mm | 20x | 28x | 38x | 47x | 64x |
| 25 mm | 26x | 36x | 48x | 60x | 81x |
| 20 mm | 33x | 45x | 60x | 75x | 102x |
| 15 mm | 43x | 60x | 80x | 100x | 135x |
| 12.5 mm | 52x | 72x | 96x | 120x | 163x |
| 10 mm | 65x | 90x | 120x | 150x | 203x |
| 9 mm | 72x | 100x | 133x | 167x | 226x |
| 6 mm | 108x | 150x | 200x | 250x | 339x |
| 5 mm | 130x | 180x | 240x | 300x | 406x |
| 4 mm | 163x | 225x | 300x | 375x | 508x |
The full version of that grid, with exit pupils, lives on the eyepiece focal length to magnification chart.
What is the maximum useful magnification of a telescope?
About 2x per millimetre of aperture, which is the same rule as 50x per inch. A 130 mm telescope tops out near 260x. An 8 inch, 203 mm, telescope tops out near 406x. A 76 mm department store reflector tops out near 152x, which is why the "525x" printed on its box is not an exaggeration so much as a fiction.
The limit exists because aperture, not magnification, collects detail. Light passing through a circular opening diffracts, and that diffraction sets a hard floor on how close two points can be and still be seen as two points. The classic expression of it is the Dawes limit:
Dawes limit in arcseconds = 4.56 ÷ aperture in inches
A 4 inch telescope resolves down to about 1.14 arcseconds. An 8 inch resolves down to about 0.57. Magnifying past the point where that detail is comfortably visible enlarges the blur along with everything else. The image gets bigger and stops getting better, which is what observers mean by empty magnification.
| Aperture | Inches | Max useful | Dawes limit | Realistic ceiling on an average night |
|---|---|---|---|---|
| 60 mm | 2.4 | 120x | 1.93" | Aperture limited, use it all |
| 76 mm | 3.0 | 152x | 1.52" | Aperture limited, use it all |
| 80 mm | 3.1 | 160x | 1.45" | Aperture limited, use it all |
| 102 mm | 4.0 | 204x | 1.14" | Aperture limited on most nights |
| 130 mm | 5.1 | 260x | 0.89" | Seeing starts to bite around 220x |
| 150 mm | 5.9 | 300x | 0.77" | Seeing limited, about 220x to 250x |
| 203 mm | 8.0 | 406x | 0.57" | Seeing limited, about 250x |
| 254 mm | 10.0 | 508x | 0.46" | Seeing limited, about 250x |
| 305 mm | 12.0 | 610x | 0.38" | Seeing limited, about 250x |
Read the last column carefully, because it is the part that surprises people who have just bought a large telescope. Atmospheric seeing, not aperture, sets the ceiling on almost every night. The air above you is turbulent, and that turbulence is magnified along with the planet. Most sites support 180x to 250x on a typical night and only a handful of nights a year support more. The payoff for a large aperture is a brighter, sharper image at 200x, not a usable image at 500x. The full table by aperture is on the maximum useful magnification chart.
What is exit pupil and why does it set the low power limit?
Exit pupil is the width of the cone of light leaving the eyepiece, and it is the number that decides whether your eye can use everything the telescope collected. Two equivalent formulas give it:
Exit pupil = aperture ÷ magnification = eyepiece focal length ÷ focal ratio
A fully dark-adapted adult pupil opens to roughly 7 mm, and that figure shrinks with age, to around 5 mm by the sixties for many people. If the exit pupil is wider than your pupil, the outer part of the light cone hits your iris and is thrown away. In a Newtonian or a Cassegrain the shadow of the secondary mirror also starts to become visible as a dark blob in the centre of the field, which is a startling thing to see the first time.
That sets a practical low power floor of about aperture divided by 7. A 203 mm telescope should not go much below 29x, and an eyepiece longer than about 7 times the focal ratio in millimetres is wasted. At f/6 that is a 42 mm eyepiece; at f/10 it is a 70 mm eyepiece, which does not exist in a usable form, which is why long focal ratio telescopes cannot deliver wide fields at all.
| Exit pupil | What it is good for | Trade off |
|---|---|---|
| 7 mm | The absolute low power limit, widest possible field | Light wasted unless you are young and fully dark adapted |
| 5 mm | Large nebulae, sweeping the Milky Way, finding targets | Sky glow is brightest here in a light polluted site |
| 3 mm | Most galaxies and clusters, the general purpose setting | None, this is the comfortable middle |
| 2 mm | Small galaxies, planetary nebulae, bright globulars | Field narrows noticeably |
| 1 mm | Planets, the Moon, splitting double stars | Image visibly dimmer, seeing becomes the limit |
| 0.5 mm | The practical high power floor | Dim, soft, and floaters in your eye become obvious |
How does magnification change the field of view?
True field of view is the apparent field of the eyepiece divided by the magnification. A 52 degree Plossl at 120x shows 52 divided by 120, which is 0.43 degrees, slightly less than the width of the full Moon. The same eyepiece at 48x shows 1.08 degrees, more than twice the Moon.
This is why high magnification makes objects harder to find rather than easier. At 300x in a 1200 mm telescope you are looking at a patch of sky about a fifth of a degree across, and an undriven Dobsonian will carry a target out of that patch in under thirty seconds. Beginners routinely fit the highest power eyepiece first, find nothing at all, and conclude the telescope is faulty. Always start with the longest eyepiece you own, centre the target, then work up. The field of view calculator works the same arithmetic for camera sensors as well as eyepieces.
An eyepiece with a wider apparent field buys back some of that. A 68 degree eyepiece at a given magnification shows about 30 percent more sky than a 52 degree Plossl at the same power, and an 82 degree eyepiece shows about 58 percent more. On an undriven telescope that translates directly into how often you have to nudge the tube, which is why wide field eyepieces and Dobsonians go together.
What magnification should you actually use?
The useful answer is by target, not by number. Most observers spend most of a session between 50x and 150x, and the highest power eyepiece in the case comes out a few times a year.
| Target | Useful magnification | Why |
|---|---|---|
| Large open clusters, the Pleiades | 20x to 40x | They are larger than the Moon, so power crops them |
| Large nebulae, Orion, the Lagoon | 40x to 80x | Faint and extended, they want brightness not size |
| Galaxies | 50x to 120x | Faint, so keep the exit pupil above 2 mm |
| Globular clusters | 120x to 200x | Power is what resolves the core into stars |
| Planetary nebulae | 150x to 250x | Small and bright, they take all the power seeing allows |
| The Moon | 50x to 250x | Bright enough that seeing is the only limit |
| Jupiter and Saturn | 120x to 200x | Above 200x contrast usually falls faster than detail rises |
| Mars near opposition | 180x to 250x | A small disc that needs every arcsecond you can get |
| Double stars | 150x to 300x | Points of light, so dimming costs you almost nothing |
Why do cheap telescopes advertise 525x?
Because magnification is the only telescope specification a non-astronomer recognises, and because it is the cheapest one to inflate. Fitting a 4 mm eyepiece and a 3x Barlow to a 700 mm focal length telescope genuinely produces a 525x optical arrangement. It also produces a dim, shaking, featureless blur, because the 76 mm aperture in front of it caps useful magnification at about 152x.
Treat a large magnification claim on the front of a box as a reliable warning label. The telescopes that print it are the ones with plastic focusers, undersized tripods and mirrors that cannot be collimated, and they are the single most common reason people conclude that astronomy is not for them. Two things predict a good beginner telescope far better than any magnification figure: the aperture, and whether the mount is steady enough to leave the image still. The telescope buying guide works through both, and the beginner telescope roundup names specific instruments at each budget.
One more expectation worth setting alongside the arithmetic: even at the perfect magnification, a telescope does not show colourful nebulae to the eye. Night vision runs on rod cells, which are nearly monochrome, so nebulae read as grey-green mist and galaxies as faint grey ovals. The Moon, the planets, double stars and clusters are the targets that genuinely look spectacular through an eyepiece, and knowing that in advance is the difference between a hobby and a cupboard ornament.
Related tools and charts
- Eyepiece calculator, plan a whole eyepiece set around one telescope
- Field of view calculator, for eyepieces and camera sensors
- Focal ratio calculator, what f number means for your images
- Maximum useful magnification by aperture
- Planet viewing by aperture
Frequently asked questions
How do you calculate telescope magnification?
Divide the focal length of the telescope by the focal length of the eyepiece. A 1200 mm telescope with a 25 mm eyepiece gives 1200 divided by 25, which is 48x. Swap in a 10 mm eyepiece and the same telescope gives 120x. The telescope contributes one number and the eyepiece contributes the other, which is why magnification is a property of the pairing rather than of the telescope.
What is the maximum useful magnification of a telescope?
About 2x per millimetre of aperture, which is the same as 50x per inch. A 130 mm telescope tops out near 260x and an 8 inch tops out near 400x. Past that the image gets larger, dimmer and blurrier without revealing any detail, because the aperture never collected that detail in the first place. This is why a 76 mm telescope advertising 525x is advertising a number it physically cannot deliver.
Why does high magnification make the image worse?
Three reasons stack up. The same collected light spreads over a larger image, so brightness falls with the square of the magnification. The field of view narrows, so targets drift out faster and are harder to find. And atmospheric turbulence gets magnified along with the target, which on most nights sets the real ceiling somewhere between 180x and 250x regardless of how large the telescope is.
What magnification do I need to see Saturn rings?
Around 50x shows the rings as a distinct shape rather than as a bulge, and around 100x shows them clearly separated from the globe of the planet. The Cassini division, the dark gap in the rings, generally needs 150x or more, a steady night and at least about 100 mm of aperture. Most observers find the best Saturn view somewhere between 150x and 200x rather than at the highest power available.
What is a Barlow lens and does it really double magnification?
A Barlow is a negative lens that sits ahead of the eyepiece and multiplies the effective focal length of the telescope, usually by 2x or 2.5x. It genuinely doubles the magnification of every eyepiece you own, so a two eyepiece kit behaves like four. The catch is that a poor Barlow adds its own aberrations, and doubling past the useful maximum of the telescope produces the same empty magnification as a very short eyepiece would.
What magnification is best for deep sky objects?
Lower than most people expect. Galaxies and nebulae are large and faint, so they benefit from a bright wide field rather than from magnification, and most look best between 30x and 80x. Globular clusters and planetary nebulae are the exceptions and reward 100x to 200x. As a rule, use the lowest magnification that puts the object comfortably inside the field.
How we choose: we compare published manufacturer specifications, optical figures we can verify, and reviews from owners who have used the equipment under real skies. We do not test gear in person. Never point any telescope, finder or binocular at the Sun without a certified full-aperture solar filter fitted over the front of the instrument.

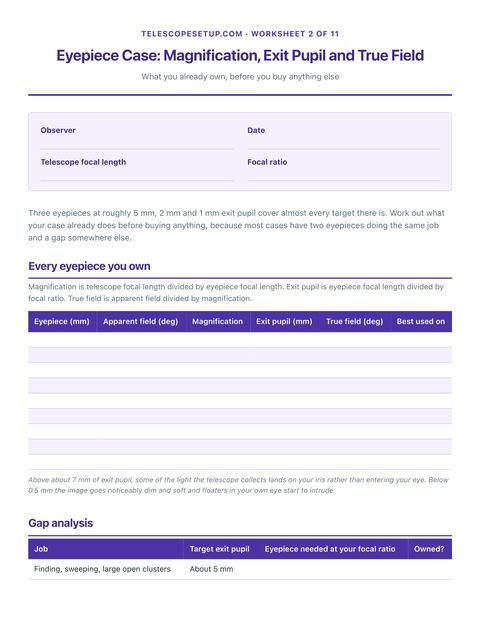

Recording your own eyepieces, exit pupils and sessions? The Observing & Astrophotography Planner is the paid version of these pages: 8 printable worksheets you fill in with your own numbers, plus the full PDF, $29.
